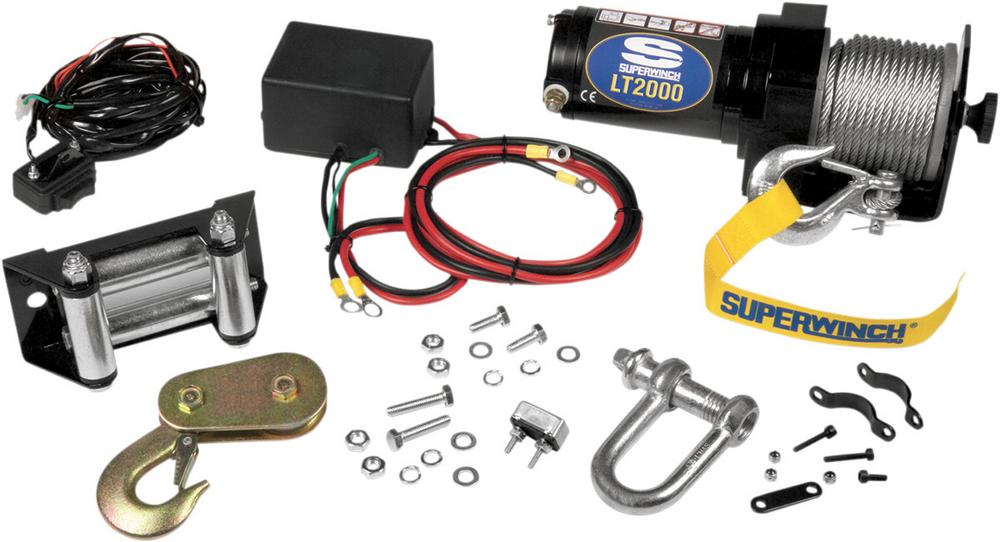

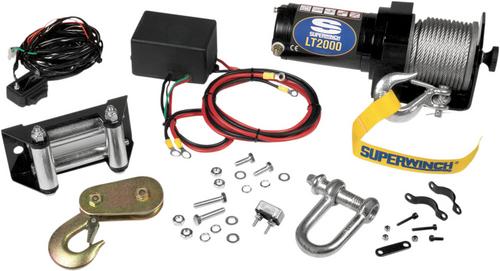

2,000-lb. capacity
Low-amp, permanent magnet, 1 hp, 12V DC motorDifferential planetary gear train with 153:1 ratioMechanical and dynamic brakingPull and turn freespooling clutchCircuit breaker protectedSealed, handlebar-mounted rocker switchIncludes 49' of 5/32" cable with heavy-duty, thimble-end latched hookIncludes four-way roller fairlead and heavy-duty bow shackleRated Line Pull 2,000 lbs (907 kgs)Motor 1.0 HP Permanent MagnetGearing 1-Stage PlanetaryGear Ratio 153:1Solenoid Dual Relays and Circuit Breaker ProtectedClutch Free-Spooling, Pull and TurnBrake DynamicRope Wire Rope 5/32" x 50' (3.9mm x 15.2m)Hook Permanent/LatchedFairlead 4-Way RollerRemote Handle Bar Mounted Rocker SwitchDimensions 11.0” L x 4.1” D x 4.1” H (285mm L x 105mm D x 105mm H)Drum Diameter Drum Diameter: 1.25” (31.8mm)Drum Length Drum Length: 2.83” (72.0mm)Mounting Bolt Pattern 2 Hole, 3.15" (80mm) on centerInstalled Weight 14.2 lbs (6.44 kgs)Shipping Weight 18.75 lbs (8.5 kgs)Warranty One-Year Limited WarrantyUPC 0 22705 00265 3Line Pull: 0 lbs 10 Amps Motor Draw / 10.0 FPM (3.0 MPM) Line SpeedLine Pull: 2,000 lbs 100 Amps Motor Draw / 2.5 FPM (0.8 MPM) Line Speed

Manufacturer's Part Number	1120210
CARB Approved	Yes
