Aluminum strip to help size the flange can be seen here.
This bolt best shows how there are 3 nuts, with accompanying flat and lock washers.
Use mouse scroll wheel over image or pinch-to-zoom on touch devices. You can also click and drag around on image.

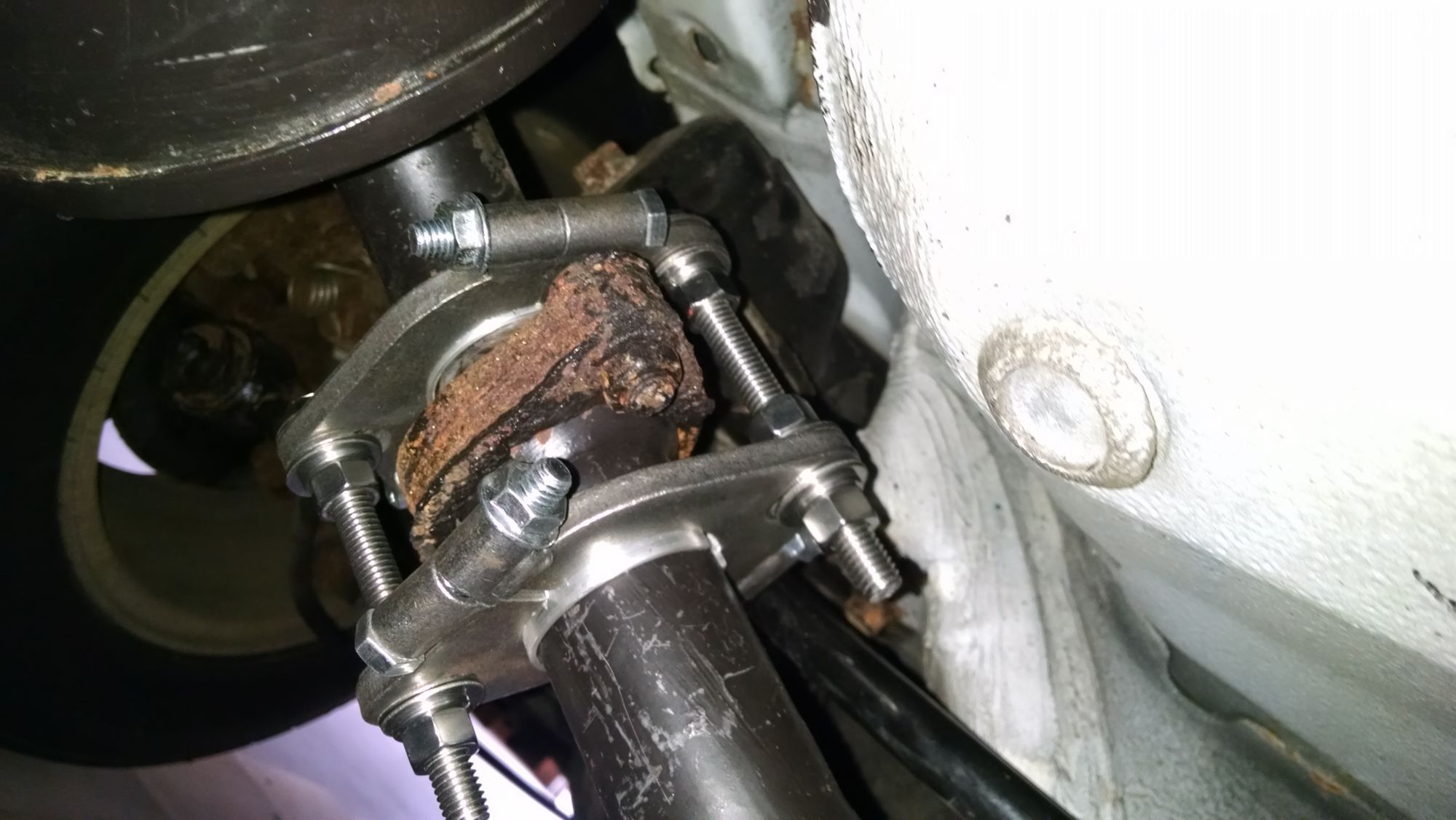

3 of 3 Installed
Parked toHonda Accord
The sequence of assembly can be seen in "2 of 3 Parts". Here the complete installation can be seen. I hope this extends the life of the exhaust system and do not expect the hardware to significantly affect the car's ETs or MPH.
Vehicle Info: 2000 Honda Accord
